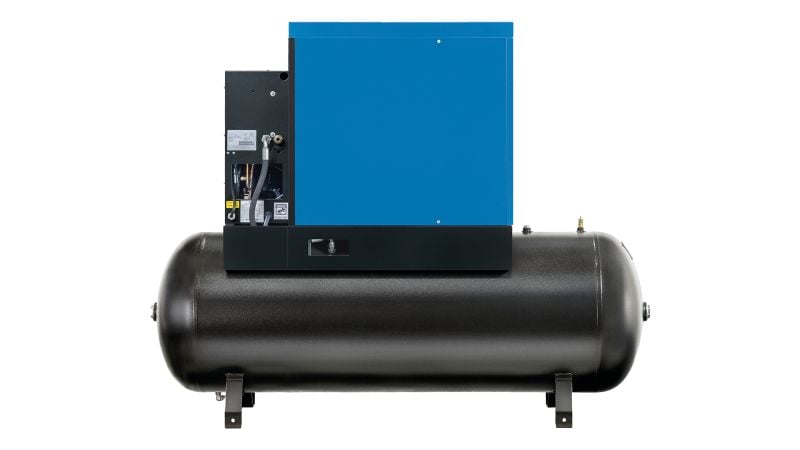

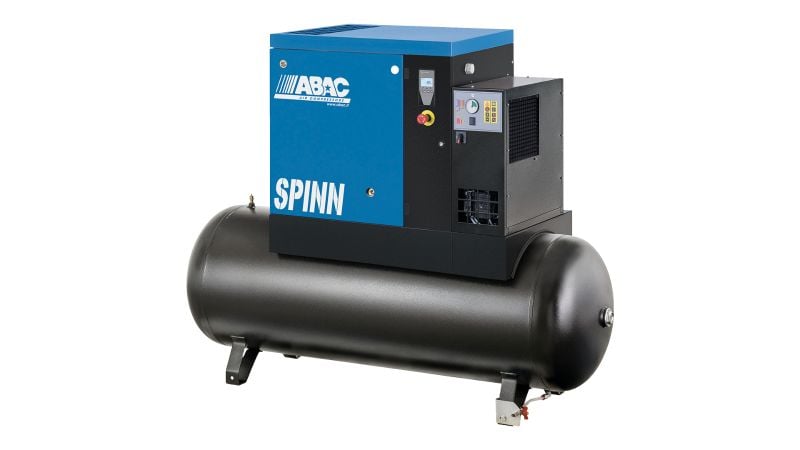

4152022645 | 7.5 kW Fixed-Speed Screw Compressor with Integrated Dryer SPINN 7.5XE 10 bar

7.5 kW Fixed-Speed Screw Compressor with Integrated Dryer SPINN 7.5XE 10 bar (part reference 4152022645). A rotary screw air compressor for supplying compressed air to connected equipment.

Tank Mounted Dryer Specification Value Performance data Max Working Pressure (Bar) 10 Bar Max Working Pressure (psi) 145 PSI FAD capacity (l/min) 996 l/min FAD capacity (cfm) 35.2 Cfm Pump element C55* Vessel size (lt) 500 Liter Vessel size (gal) 132.1 Gal Configuration Full Feature Motor (hp) 10 Hp Motor (kw) 7.5 kW Noise Level 65 dB(A) Supply voltage 400 V Frequency 50 Hz Number of phases 3 Oil capacity 3.2 Liter Dimensionals product Length 1945 mm Height 1468 mm Footprint (LxW) 1.4 Sqm Logistics SmartInventory class In stock Stackability No.

• Pressure rating: 10 bar

• Motor power: 7.5 kW

• Motor power: 10 hp

• Voltage: 400V

Need help with compatibility? Contact Airmatic Compressors before ordering if you need advice on suitability, availability or delivery times.

Stock levels change daily. Prices exclude VAT and delivery unless shown otherwise at checkout.
