Compressed Air Dryers

High-performance refrigerant and desiccant dryers designed to deliver clean, dry compressed air for your applications.

Removes moisture from compressed air to protect equipment and processes
Compact, easy-to-install solutions suitable for new or existing systems
Compatible with all compressor technologies and system configurations
Cost-effective protection for your compressed air network

Why Compressed Air Dryers Are Important

During the compression process, an air compressor converts the humidity present in intake air into condensate. If this moisture is not removed, it can lead to corrosion, wear and contamination throughout your compressed air network and downstream equipment.

Excess moisture in compressed air systems can cause serious issues including rust in pipework, damage to air tools, reduced efficiency and interruptions to production. In certain industries it can also affect product quality and process reliability.

Compressed air dryers are designed to remove this moisture from the air before it enters the distribution system. By cooling or drying the compressed air and separating the condensate, dryers ensure that the air delivered to your equipment is clean, dry and suitable for your application.

Installing the correct air dryer helps protect your compressed air network, extend the service life of equipment and maintain reliable operation across your entire system.

BENEFITS OF

COMPRESSED AIR DRYERS

Compressed air dryers offer the following benefits to your business.

Clean & Dry Air

Excess water is adsorbed or removed by the drying process, protecting your air network from corrosion, rust and leakages. This results in increased productivity and a higher quality final product.

Cost-Efficient Solution

Reduced risk of wear, corrosion and rust, lowers maintenance costs and increases lifetime of equipment and downstream tools.

Easy Installation

Compact solution that takes up minimal space and is ready to install.

User-Friendly Operation

Compatible with any compressor technology and brand. Equipped with user-friendly display that indicates pressure dew point and maintenance requirements.

Key Benefits of Compressor Control Systems

Different applications require different levels of air dryness. The two most common types of compressed air dryers are refrigerant dryers and desiccant dryers, each suited to different operating conditions.

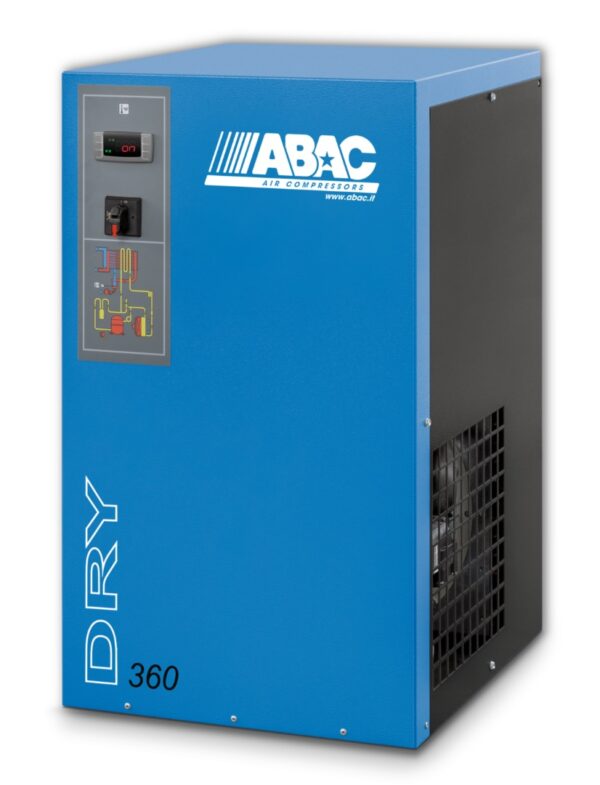

Refrigerant Air Dryers

Refrigerated air dryers are the most commonly used type of dryer in industry. They work by cooling compressed air to approximately 3°C, causing the water vapour to condense into liquid so it can be removed from the system.

Once the moisture has been separated, the dry air is reheated slightly before entering the compressed air network. This prevents further condensation from forming within the pipework.

Refrigerant dryers provide a reliable and cost-effective solution for most general industrial applications, including manufacturing, automotive, engineering and many other production environments.

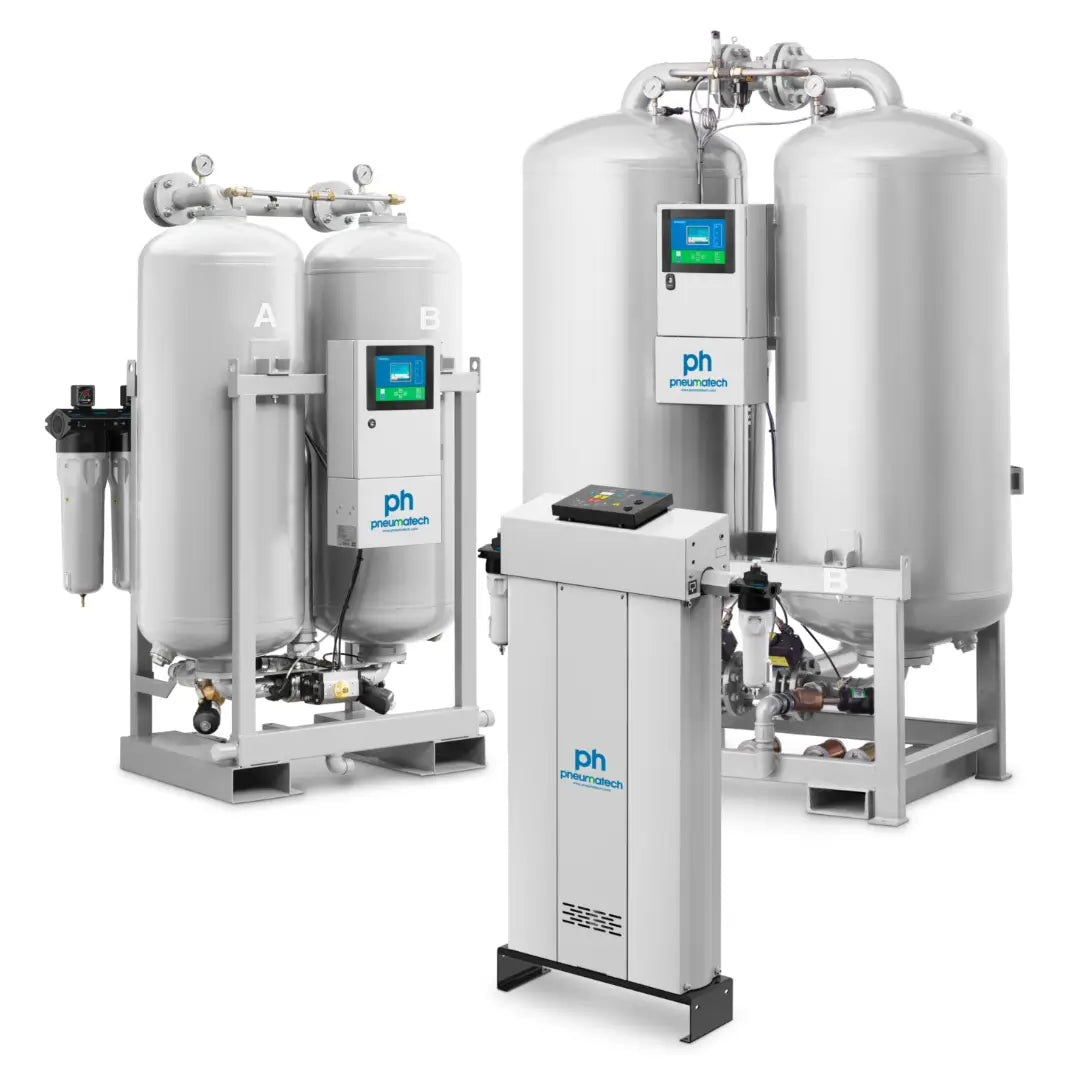

Desiccant Air Dryers

Desiccant dryers, also known as adsorption dryers, are used where much lower dew points are required. These systems are capable of producing extremely dry air with pressure dew points as low as -40°C or even -70°C.

A typical desiccant dryer consists of two pressure vessels filled with desiccant material. As compressed air passes through one vessel, the desiccant adsorbs the moisture from the air. Once the material reaches its moisture capacity, the system automatically switches to the second vessel while the first regenerates.

This twin-tower process ensures a continuous supply of ultra-dry compressed air, making desiccant dryers ideal for applications in industries such as food processing, pharmaceuticals, electronics and other sensitive manufacturing processes.
