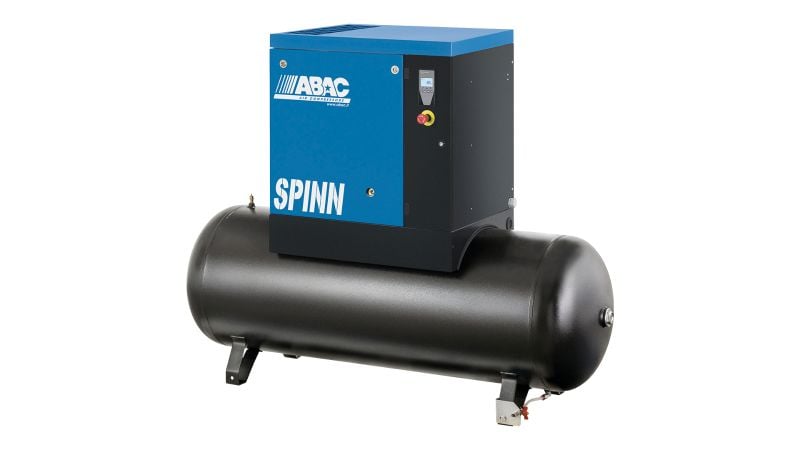

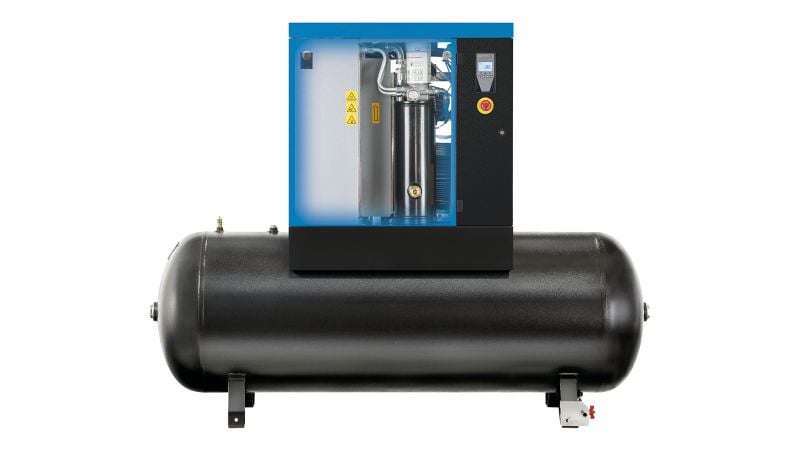

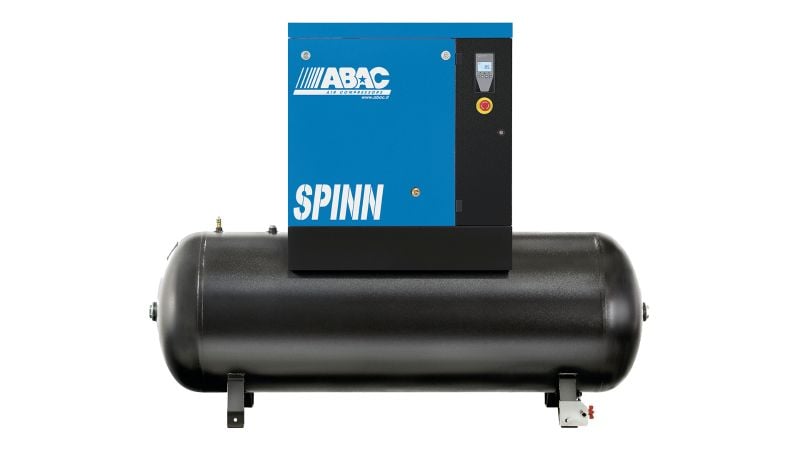

5.5kW Fix Speed Screw Compressor Spinn 5.5X 8bar (4152022619)

5.5kW Fix Speed Screw Compressor Spinn 5.5X 8bar (4152022619)

Tank Mounted Specification Value Performance data Max Working Pressure (Bar) 8 Bar Max Working Pressure (psi) 116 PSI FAD capacity (l/min) 846 l/min FAD capacity (cfm) 29.9 Cfm Pump element C55* Vessel size (lt) 270 Liter Vessel size (gal) 71.3 Gal Configuration Tank Mounted Motor (hp) 7.5 Hp Motor (kw) 5.5 kW Noise Level 64 dB(A) Supply voltage 400 V Frequency 50 Hz Number of phases 3 Oil capacity 3.2 Liter Dimensionals product Length 1543 mm Height 1337 mm Logistics SmartInventory class Available on request Stackability No.

Key features

• Brand: ABAC

• Category: Compressors > Screw Compressors > Spinn Floor Mounted

• Pressure rating: 8 bar

• Motor power: 5.5 kW

• Motor power: 7.5 hp

• Voltage: 400V

Need help with compatibility? Contact Airmatic Compressors before ordering if you need advice on suitability, availability or delivery times.
