4152022630 | 11 kW Fixed-Speed Screw Compressor SPINN 11 8 bar

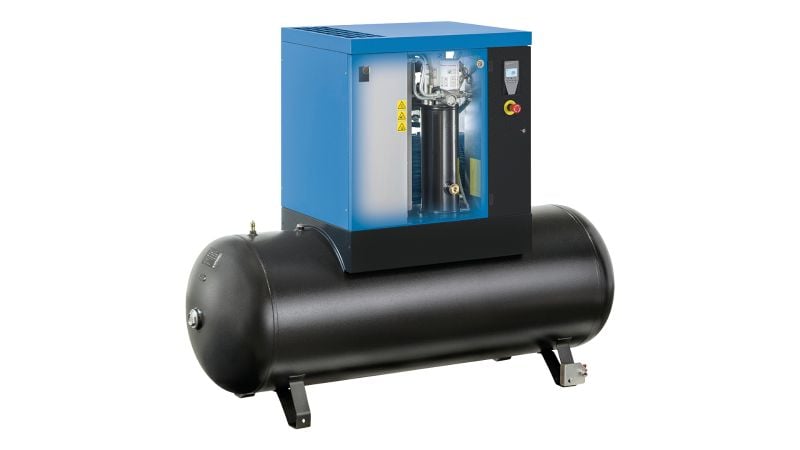

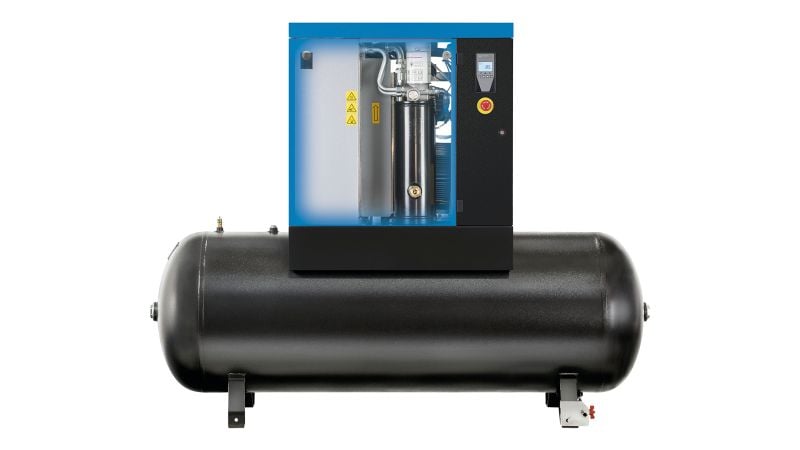

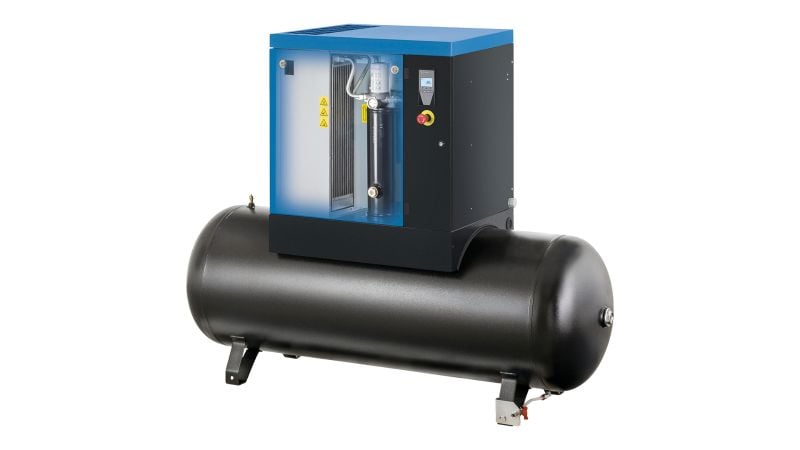

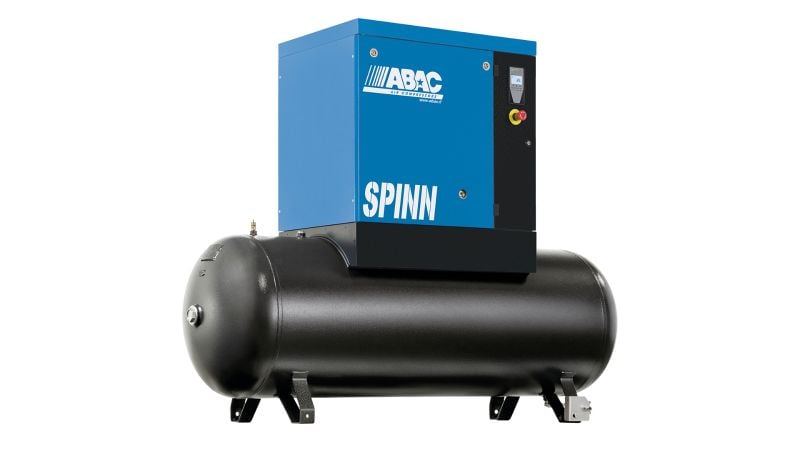

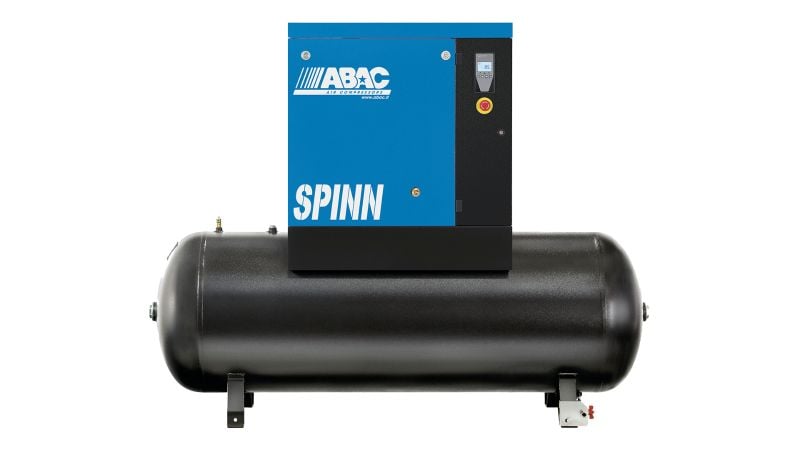

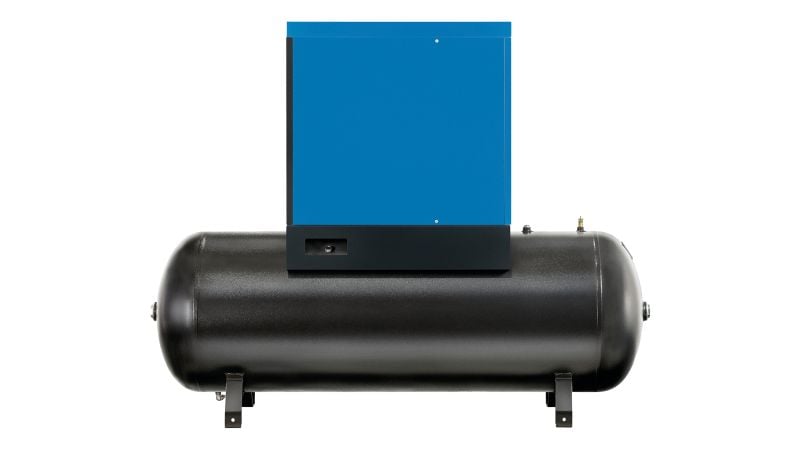

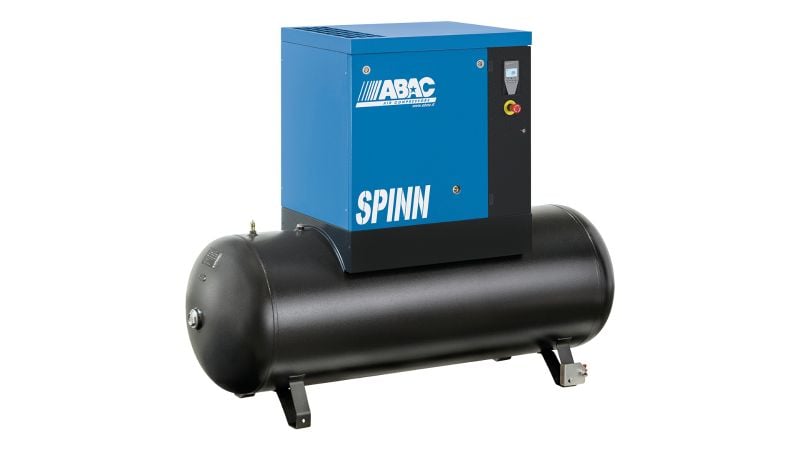

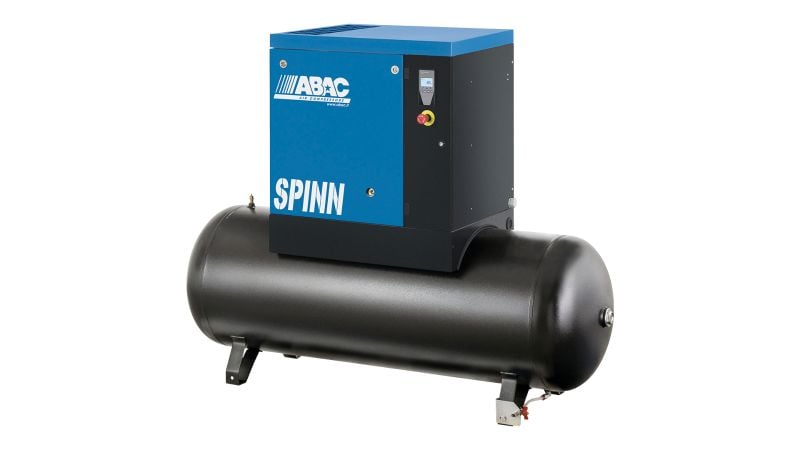

11 kW Fixed-Speed Screw Compressor SPINN 11 8 bar (part reference 4152022630). A rotary screw air compressor for supplying compressed air to connected equipment.

Tank Mounted Specification Value Performance data Max Working Pressure (Bar) 8 Bar Max Working Pressure (psi) 116 PSI FAD capacity (l/min) 1620 l/min FAD capacity (cfm) 57.2 Cfm Pump element C55* Vessel size (lt) 500 Liter Vessel size (gal) 132.1 Gal Configuration Tank Mounted Motor (hp) 15 Hp Motor (kw) 11.2 kW Noise Level 69 dB(A) Supply voltage 400 V Frequency 50 Hz Number of phases 3 Oil capacity 3.2 Liter Dimensionals product Length 1945 mm Height 1468 mm Logistics SmartInventory class Available on request Stackability No.

• Pressure rating: 8 bar

• Motor power: 11 kW

• Voltage: 400V

• Power supply: 400V/3-Phase

Need help with compatibility? Contact Airmatic Compressors before ordering if you need advice on suitability, availability or delivery times.

Stock levels change daily. Prices exclude VAT and delivery unless shown otherwise at checkout.
