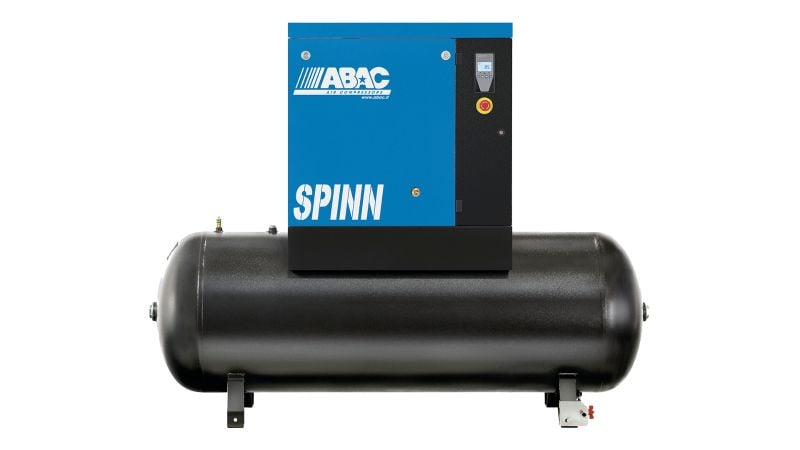

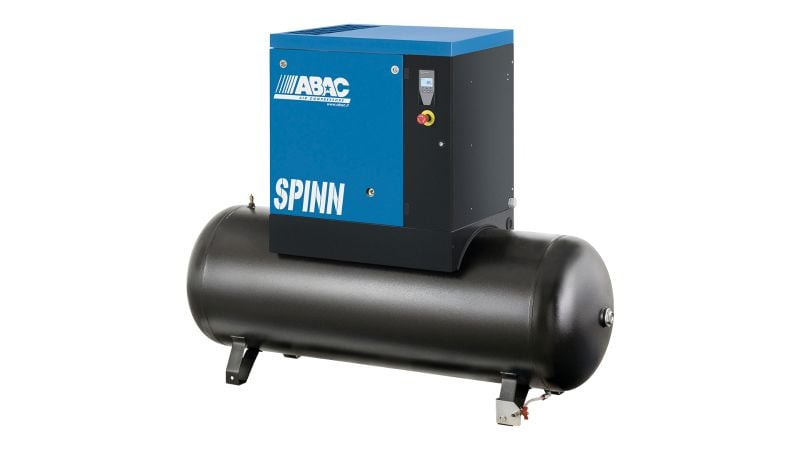

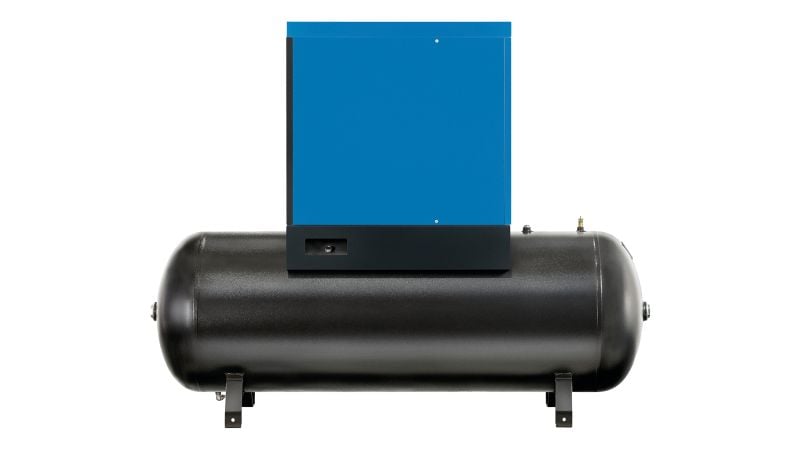

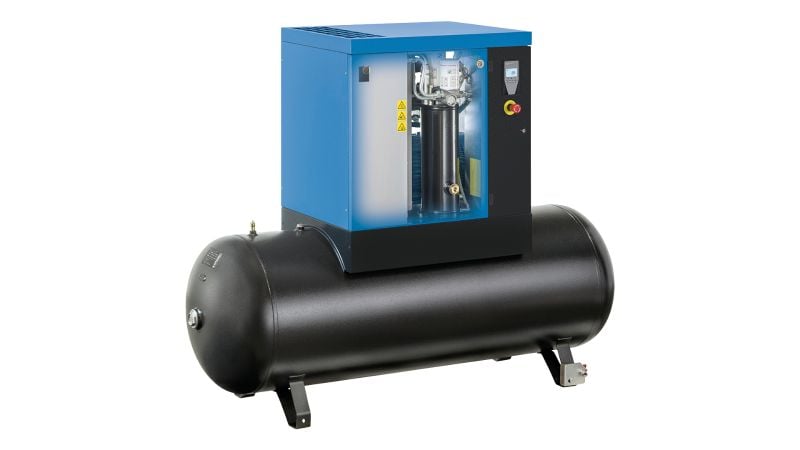

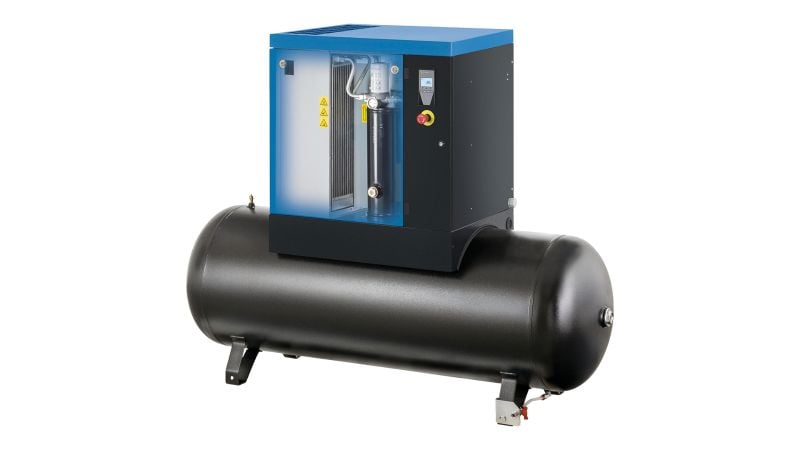

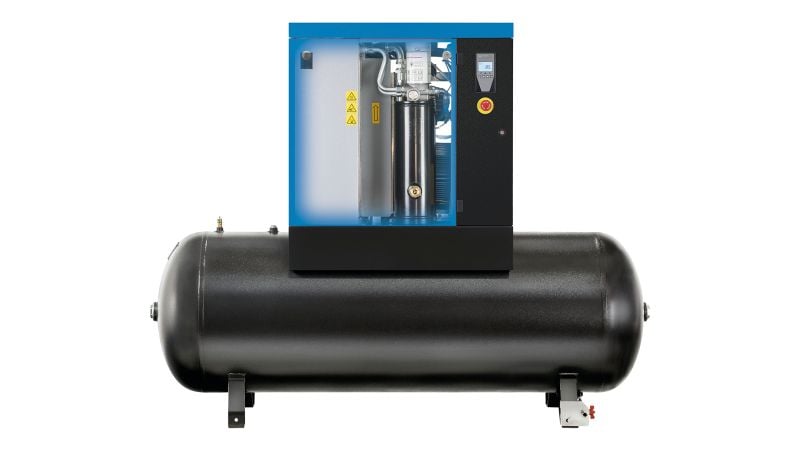

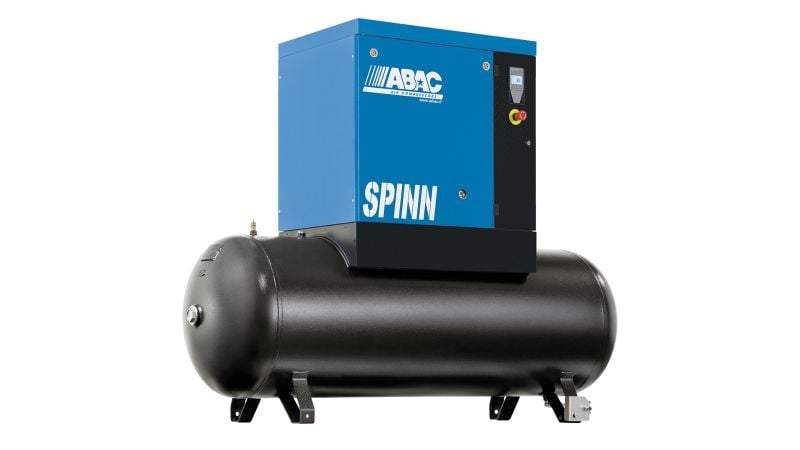

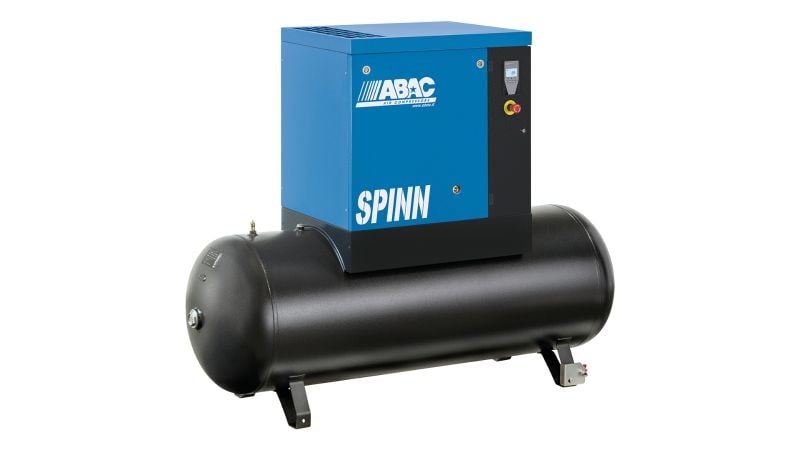

11kW Fix Speed Screw Compressor Spinn 11 10bar

11kW Fix Speed Screw Compressor Spinn 11 10bar

Tank Mounted Specification Value Performance data Max Working Pressure (Bar) 10 Bar Max Working Pressure (psi) 145 PSI FAD capacity (l/min) 1416 l/min FAD capacity (cfm) 50 Cfm Pump element C55* Vessel size (lt) 500 Liter Vessel size (gal) 132.1 Gal Configuration Tank Mounted Motor (hp) 15 Hp Motor (kw) 11.2 kW Noise Level 69 dB(A) Supply voltage 400 V Frequency 50 Hz Number of phases 3 Oil capacity 3.2 Liter Dimensionals product Length 1945 mm Height 1468 mm Logistics SmartInventory class Available on request Stackability No.

Key features

• Brand: ABAC

• Category: Compressors > Screw Compressors > Spinn Floor Mounted

• Pressure rating: 10 bar

• Motor power: 11 kW

• Voltage: 400V

• Power supply: 400V/3-Phase

Need help with compatibility? Contact Airmatic Compressors before ordering if you need advice on suitability, availability or delivery times.
